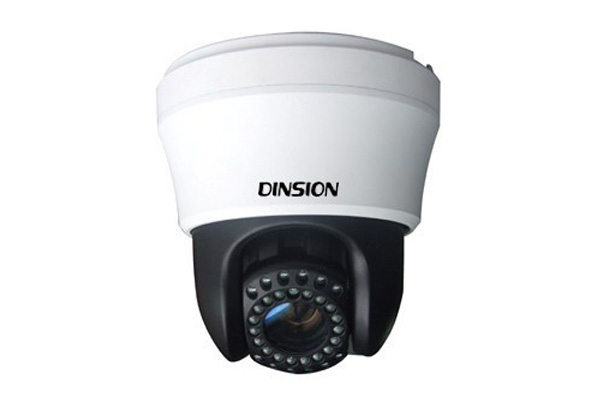

zoomCC-1000R-10H
4 inch night vision smart ball machine
CC-1000R-10H
4-inch indoor mini design, beautiful appearance
Weather environmental design, night vision distance of 30 meters
High-precision stepping motor, differential drive, smooth operation, accurate
Wide-angle speed, ball machine speed slows down with the increase of the camera zoom
6 automatic cruise function, each cruise line can be added to 16 preset points
Support the power-on operation, guard-bit function
- details
- parameters

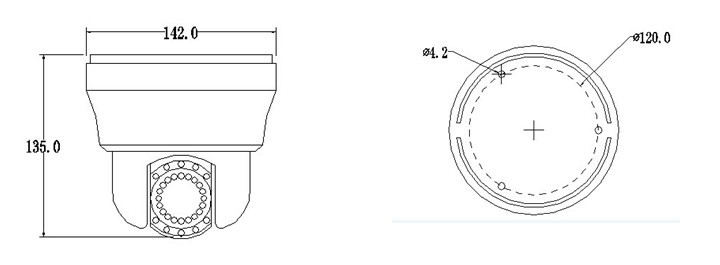

- drawings
- document
First, the camera performance characteristics
Imaging element 1/3 "SON YExviewHAD CCD
10x optical zoom lens F = 1.6f = 4.6mm-52mm
Dynamic bandwidth, slow shutter, light inhibition adjustable, auto tracking white balance, 3D digital noise reduction, automatic gain AGC, color image horizontal, vertical rotation.
Horizontal Resolution 650TVL
Minimum illumination color of 0.3Lux black and white 0.02Lux
Signal-to-noise ratio ≥ 52dB
Electronic Shutter Auto / 1/50--1/10, 000sec
First, the shield structure
Aluminum alloy shell, rapid thermal design
Indoor hanging, wall-mounted, ceiling-mounted
In line with the IP66 standard, CE, FCC standard
Built-in surge and lightning protection devices
Second, the ball machine performance characteristics
Six automatic cruise function, each cruise line can be set to 18 preset points, the residence time of preset point adjustable
Wide-angle speed, ball machine speed slows down with the increase of the camera zoom
Power-control protocol, address code and baud rate
High quality stepping motor, differential drive, running smoothly, jitter-free, no noise
Calls and modify the function of shortcut keys
Basic performance
360 ° continuous rotation, the maximum speed of 200 ° / sec
Vertical 0 ° to 90 °, 180 ° auto flip, or optional 0 ° -180 °, the maximum speed of 150 ° / sec.
128 preset positions can be set, the preset accuracy of less than 0.05 °
RS-485 bus control Pelco P / D control protocol, baud rate 2400/4800/9600 optional
Automatic power-off protection
